CADcompanion™ Mini Browser Plus for .dwg Files

CADcompanion™ Plus, like CADcompanion™ Mini Browser, is a small browser for CADtoday's .dwg files which can easily reside on your desktop concurrently with CAD programs into which you'll open or import our 2D and 3D files. If you have a large number of symbols or details - whether 2D or 3D - which you often use, CADcompanion™ Plus gives you the ability to browse through them all quickly and efficiently.

CADcompanion™ Mini is a one-window program and is not resizeable. CADcompanion™ Plus, in contrast, is a two-window program: its display window is resizeable and resides on a separate window from the unresizeable window which holds its toolbars and file selection box.

To make viewing as useful as possible, CADcompanion™ Plus includes a host of tools - including shading options, interface options, and a 3D view rotation tool - not found in CADcompanion Mini.

Here are the features of CADcompanion Plus:

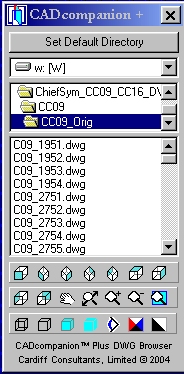

Toolbars and File Selection
Box Window

The resizeable File Display window can be set to any size or maximized and can be placed independently of the Toolbar and File Selection window.

Display Options
1. Wireframe
2. Hidden Line
3. Shaded
4. Shaded Hidden Line

Viewpoint Options
5. Top
6. Left
7. Right
8. Front
9. Rear
10. Isometric NE
11. Isometric NW
12. Isometric SE
13. Isometric SW

Viewing Options
14. 3D Rotate View
15. Pan View

Zoom Options
16. Wireframe
17. Hidden Line
18. Shaded
19. Shaded Hidden Line

Interface Options
20. Toggle Background
between Black and White
21. Set Background Color
22. Separate, Resizeable Display

Click here for the CADcompanion Plus User Guide
